GB7PG Located on UHF 439.7625 mhz with a minus 9Mhz split. DMR Colour Code 1. TS1: Network Traffic – TS2: cumbriaCQ & Local Traffic.
NOW WITH C4FM & DMR Located in Castle Douglas Scotland

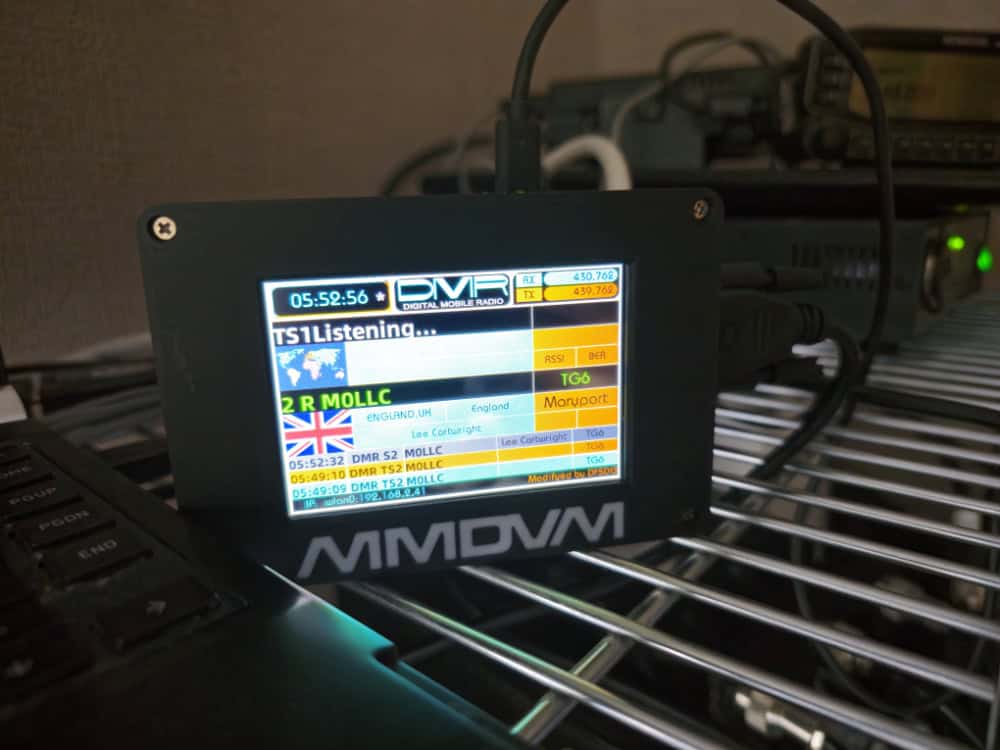

Current Live Connections & TG numbers in use here MMDVM Dashboard
Stuart’s 2M0MNB Pink Gin Repeater
Modes: C4FM & DMR
1 Mode will only work at 1 time. Allow 20 seconds AFTER a QSO as taken place to use the other mode as the repeater will ignore any new mode for 20 seconds.
C4FM
The repeater is primarily connected to the Cumbria CQ Network, with DMR available as a secondary dial-in option.
- C4FM / YAESU DIGITAL
- Always connected to the Cumbria CQ YSF Reflector 81934.
- The repeater can be switched to other reflectors. Please remember to return it to 81934 when finished.
How to Disconnect from a Room (C4FM)
To disconnect from a room while using C4FM:
- Enter Control Mode:
Press and hold the Wires-X button on your radio to switch to control mode. - Disconnect from the Room:
Once in control mode, press and hold the * button on your MIC. - Ensure No QSO Is in Progress:
You can only disconnect when there is no active QSO (conversation) in progress on the repeater. - Then Reconnect it back to 89134 or Cumbria CQ
DMR
DMR can be used via dial-in.
Time Slot 1: Any Traffic
Time Slot 2: Normally Used for Local ot CumbriaCQ Traffic but it doesnt really matter TBH
- SYSTEMX DMR Master Prefix with a 4
Talk group list: SYSTEMX Talk Groups - TGIF DMR Master Prefix with a 5
Talk group list: TGIF Talk Groups
DMR – How to Connect: First-Time User Guide
DMR utilizes 2 Time Slots (TS), enabling simultaneous use by multiple users:
- TS1: For one user/group.
- TS2: For another user/group.
DMR uses Talk Groups (TG) to connect to specific networks. Each network has its own list of talk groups.
The repeater operates on Raspberry Pi with WPSD software, which works exactly like any WPSD setup you may already use.
Connecting Example:
To connect to the SYSTEMX DMR server and access the FreeStar Talk Group:
- SYSTEMX requires a 7-digit talk group ID.
- Prefix talk group numbers with “4”, followed by the talk group ID.
- Add an extra “0” after the network ID if necessary.
- TGIF Network is Prefixed 5 then 7 digits..
Examples:
– FreeStar Talk Group: 23426 → SYSTEMX Dial Code: 4023426
– CQ North West Talk Group: 69 → SYSTEMX Dial Code: 4000069
A full list of talk group numbers can be found in the links above.
Connecting to Cumbria CQ on DMR
- Select Time Slot 2 (TS2) on your radio.
- Dial the following:
– System X Network: 4089134
– TGIF Network: 5089134
(It doesn’t matter which network you use.) - Press the TX button to connect to the desired talk group.
This guide should simplify connecting to and disconnecting from DMR and C4FM networks using the repeater. Enjoy!
FOR MORE INFO ON CUMBRIACQ CLICK HERE
To See whats talking & Connected to GB7PG – Click here for the Dashboard
