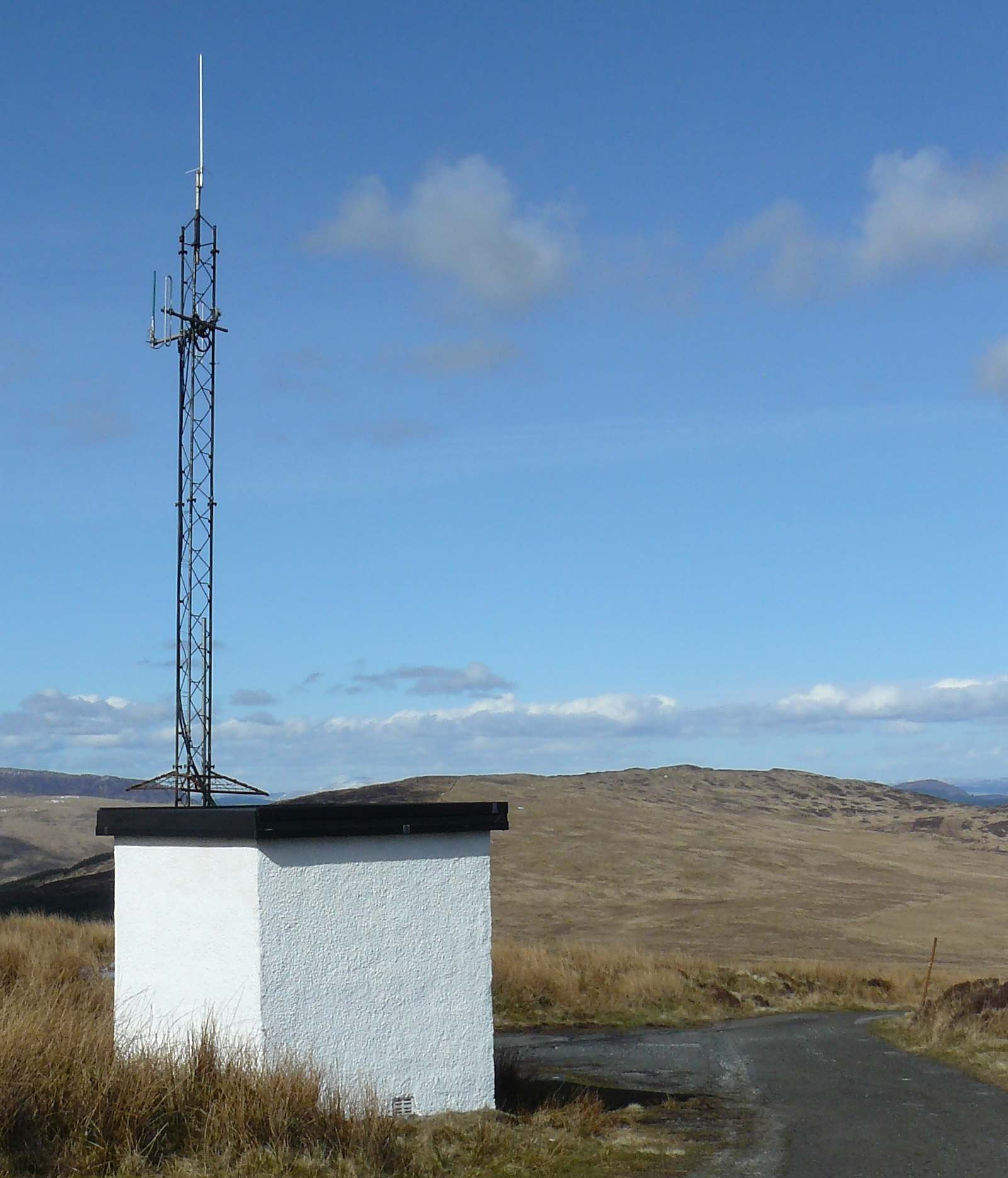

GB3DG Repeater - Newton Stewart
Updated: 22/06/2026
Basic Information
- Callsign: GB3DG
- Location: Newton Stewart, Dumfries and Galloway, Scotland
- Locator: IO74UV
- Output Frequency: 145.775 MHz
- Input Frequency: 145.175 MHz
- Input Offset: -0.6 MHz
- CTCSS: 103.5 Hz
- Mode Support: FM analogue and C4FM/System Fusion
- Coordinates: 54.89360, -4.30280
CumbriaCQ Connectivity
GB3DG is connected into the CumbriaCQ network by a remote radio hosted by MM1BHO. The remote radio links to AllStar node 601043.
- GB3DG remote AllStar node: 601043
- CumbriaCQ AllStar access: connects through node 601040 or 601041
- Use: local RF users on GB3DG can reach the CumbriaCQ network through the linked AllStar path.
Programming Notes
- RX: 145.775 MHz
- TX: 145.175 MHz
- Offset: -0.600 MHz
- Tone: 103.5 Hz encode/decode recommended
- Mode: FM analogue, with System Fusion/C4FM support listed for the repeater.
